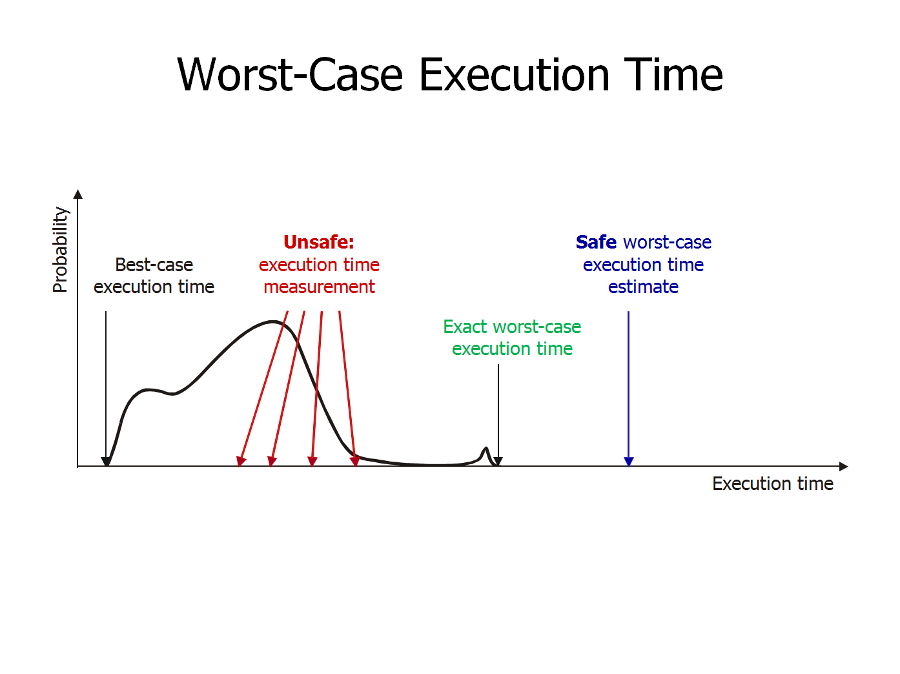

This simple sketch illustrates a typical challenge faced by developers of safety-critical real-time software when trying to determine the worst-case execution time of a given task.
- The actual WCET is unknown, and only observable in rare scenarios under very specific conditions. It is not readily apparent what those conditions are, and it is not a given that they can be created or simulated on demand.
- Testing by repeatedly measuring the execution time of a task is tedious, time-consuming, and simply not safe. Even if a test happens to hit the actual WCET by sheer luck, it is very difficult — or plain impossible — to formally prove that no other test can possibly result in an even higher time.
- Most cases are not the worst case, by definition. And so, most tests will stay way below the WCET, painting a dangerously optimistic overall picture.
Increasing the number of tests and measurements increases your workload, and while it may improve your chances of hitting the actual WCET, it is even more likely to lull you into a false sense of security, with the worst case remaining undiscovered.
“Testing, in general, cannot show the absence of errors.” — DO-178B/C
“Testing by itself is not sufficient.” — FDA
Even if you do manage to identify and replicate all the conditions leading to the maximum execution time, you will need to constantly re-evaluate your test criteria whenever any changes are made to your code by anyone on your team.
In order to address all these problems, many companies come up with their own in-house heuristics to compute safe upper approximations for the WCET, without running any tests at all.
However, with modern processor components such as caches and pipelines, such heuristics cannot provide safe results unless they deliberately overestimate the WCET, often by orders of magnitude.
