StackAnalyzer for M68k statically determines the worst-case stack usage of tasks in safety-critical applications written or generated in C, C++ or Ada and compiled to run on 68xxx processors or ColdFire.
Your benefits
- StackAnalyzer lets you prevent stack overflow for all possible inputs and task executions under any circumstances — without wasting hardware resources.
- StackAnalyzer requires no code instrumentation, no testing, no measuring, no modification of your system, no modification of your toolchain, and it will not be misled by potential flaws in debug information.
- Using StackAnalyzer is essential in meeting current safety standards such as ISO 26262, DO-178B/C, IEC-61508, and EN-50128, where statically analyzing your stack usage is part of the architectural safety requirements.
Key features
- Static analysis of binary files, exactly as they are executed in the final system.

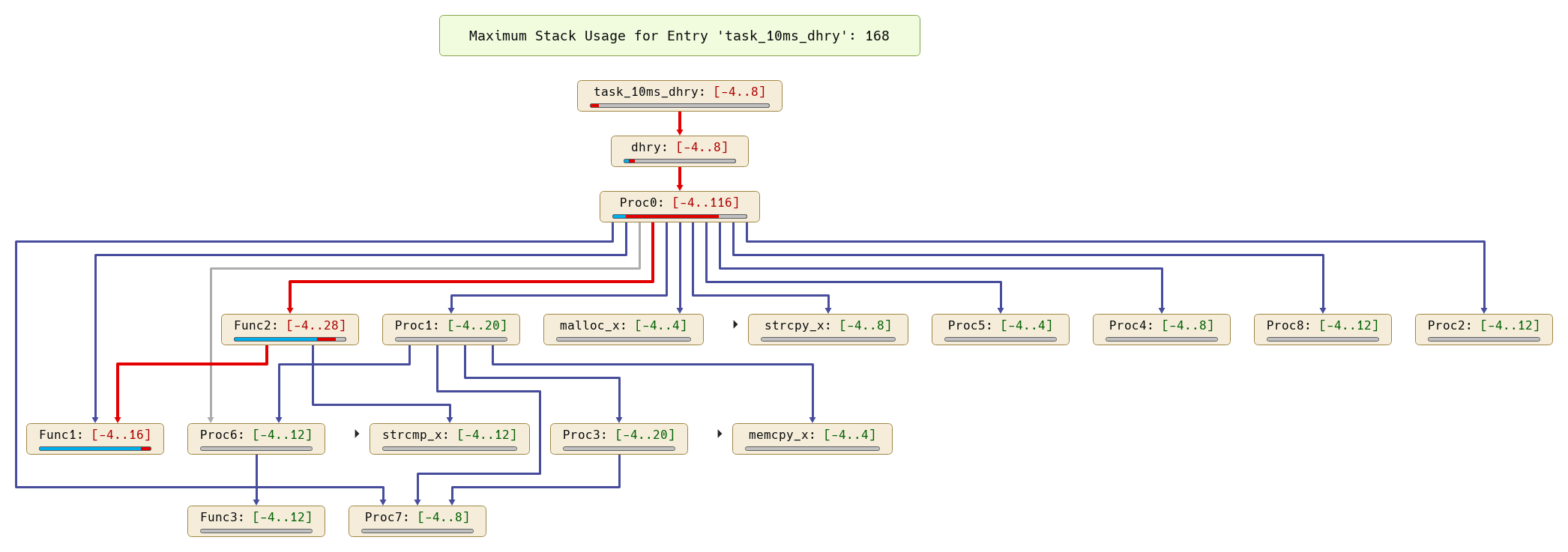

- Clear and precise information on the worst-case stack usage by tasks, procedures, basic blocks, and individual instructions.
- Recursions, function pointers, inline assembly code, and library-function calls are all taken into account.
- Automatic recognition of dead code.
- Exceptionally fast analysis of complex real-world software.
- Freely selectable entry points for the analysis, so you can focus on the worst-case path or other areas of interest, and speed up the analysis even further.
- Difference analysis for comparing the stack usage before and after making changes to your system.
- Customizable XML reports for documentation and certification.
- Feature-rich GUI with graphical and textual views for analysis results, statistics, control flow, source code, assembly code, DWARF debug info, symbol tables, configuration files, and more.
- Command-line mode for easy integration into automated build processes.
- Plugins for TargetLink and Jenkins.
- Seamless integration with other analysis tools from AbsInt — e.g. TimingProfiler for profiling the worst-case execution time.
Supported processor derivates
- 68000
- 68010
- 68020
- 68030
- including 68881 and 68882 coprocessors
- ColdFire
All license variations always cover all of the above.
Supported compilers
- Diab C/C++ compiler (Wind River)
- GNU C/C++ Compiler (GCC)
- HP 68000 compiler (C or Ada source code)
- Microtec C compiler (Siemens)
- XD Ada compiler
The standard license covers one compiler of your choice. Additional compilers can be unlocked for a surcharge.
Also available
Qualification support
Your usage of StackAnalyzer for M68k can be qualified according to ISO 26262, DO-178B, DO-178C, IEC-61508, EN-50128, IEC-60880, and other safety standards. We offer Qualification Support Kits that help you simplify and automate your qualification process.
System requirements
- Windows: 64-bit Windows 10 or 11
- Linux: 64-bit RHEL 9 or compatible
- 4 GB of RAM (16 GB recommended)
- 4 GB of disk space
- The Linux version requires the
libxcb-*family of libraries to be installed - Support for macOS is possible on request for a surcharge
Free trial
You can try StackAnalyzer for free, on your own applications, for a period of 30 days. Your free-trial package includes online training and tech support.
