Analyzing execution time with aiT

Static timing analysis with aiT

The WCET determination is composed of several different tasks.

  1. Reconstruction of the control flow from binary executables.
  2. Value analysis: computation of address ranges for instructions accessing memory.
  3. Cache analysis: classification of memory references as cache misses or hits.
  4. Pipeline analysis: predicting the behavior of the program on the processor pipeline.
  5. Path analysis: determination of the worst-case execution path of the program.
  6. Analysis of loops and recursive procedures.

Many of these tasks are quite complex for modern micro­pro­cessors and DSPs.

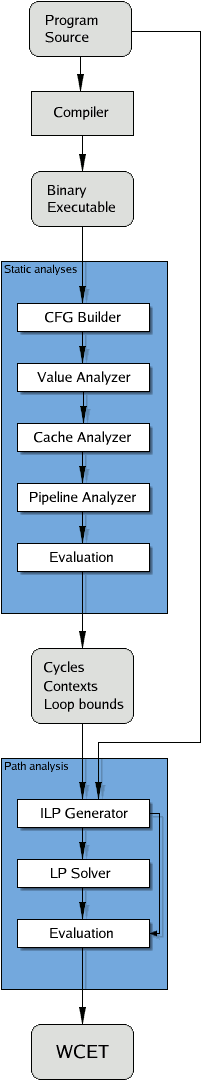

The arrangement of the tasks is described in the sim­plified picture to the right. The results of the value analysis are used by the cache analysis to predict the behavior of the (data) cache. The re­sults of the cache analysis are fed into the pipe­line analysis allowing the predic­tion of pipe­line stalls due to cache misses. The combined results of the cache and pipeline analyses are used to compute the execution time of pro­gram paths.

The separation of the WCET determination into several phases has the additional effect that different methods tailored to sub­tasks can be used. In our case, the value analysis, the cache analysis, and the pipeline analysis are done by abstract inter­pretation, a semantics-based formal method for safe and sound static program analy­sis. Path analysis is done by integer linear programming.

Reconstruction of the control flow from binary programs

The starting point of our analysis framework is a binary program and optional additional user-provided information about numbers of loop iterations, upper bounds for recursion, etc.

In the first step a parser reads the compiler output and reconstructs the control flow. This re­quires some knowledge about the underlying hardware, e.g., which instructions represent branches or calls. The reconstructed control flow is annotated with the information needed by subsequent analyses and then translated into CRL (Control Flow Representation Language), a human-readable intermediate format designed to simplify analyses and optimizations at the executable/assembly level. This annotated control flow graph serves as the input for micro­architecture analyses.

Value analysis

The value analysis determines ranges for values in registers and by this it can resolve indirect accesses to memory. aiT offers an add-on that actually lets you inspect the contents of all registers and memory cells at any program point in any execution context.

Cache analysis

The cache analysis classifies the accesses to main memory, i.e. whether or not the needed da­ta resides in the cache. The categorization of memory references and memory blocks is de­scribed in the table below.

always hitThe memory reference always results in a cache hit.
always missThe memory reference always results in a cache miss.
persistentThe referenced memory block is loaded at most once.
unreachableThe code cannot be reached.
not classifiedThe memory reference couldn’t be classified as any of the above.

For certain target processors, cache-related preemption costs can be taken into account by the so-called Useful–Cache-Block (UCB) analysis. The number of useful cache blocks at a particular instruction then serves as an upper bound for the number of additional cache misses caused by an interrupt/preemption at that instruction.

Pipeline analysis

Visualization of pipeline analysis results for one instructionThe pipeline analysis models the pipeline behavior to de­ter­mine execution times for a sequen­tial flow (basic block) of in­structions. It takes into account the current pipeline state(s), in parti­cular the resource occupancies, the contents of prefetch queues, the grouping of instructions, and the classification of memory references as cache hits or misses. The result is an execu­tion time for each instruction in each distin­guished ex­e­cution context.

Path analysis

Following from the results of the micro­archi­tecture analyses, the path analysis determines a safe estimate of the WCET. The program’s control flow is modeled by an inte­ger linear program, so that the solution to the objective function is the predicted worst-case execution time for the input program. A special mapping of variable names to basic blocks in the integer linear program provides for a computation of execution and traversal counts for every basic block edge.

Analysis of loops and recursive procedures

Loops and recursive procedures are of special interest, since programs spend most of their runtime there. Treating them na­ïvely when analyzing programs for their cache and pipeline be­havior will result in a high loss of precision.

Frequently, the following observation can be made: the first ex­e­cution of the loop body usually loads the cache, and sub­se­quent executions find most of their referenced memory blocks in the cache. Hence, the first iteration of the loop often en­coun­ters cache contents quite different from those of later iterations. This has to be taken into ac­count when analyzing the behavior of a loop in the cache. A naïve analysis would combine the abstract cache states from the entry to the loop and from the return from the loop body, thereby losing most of the contents. Therefore, it is useful to distinguish the first iteration of a loop from the others.

A method has been designed and implemented which virtually unrolls loops once, the so-called VIVU (virtual inlining, virtual unrolling) approach. Mem­o­ry references are now considered in different execution contexts, essentially nestings of first and non-first iterations of loops.
