ał release 21.10

ał screenshot
ał screenshot

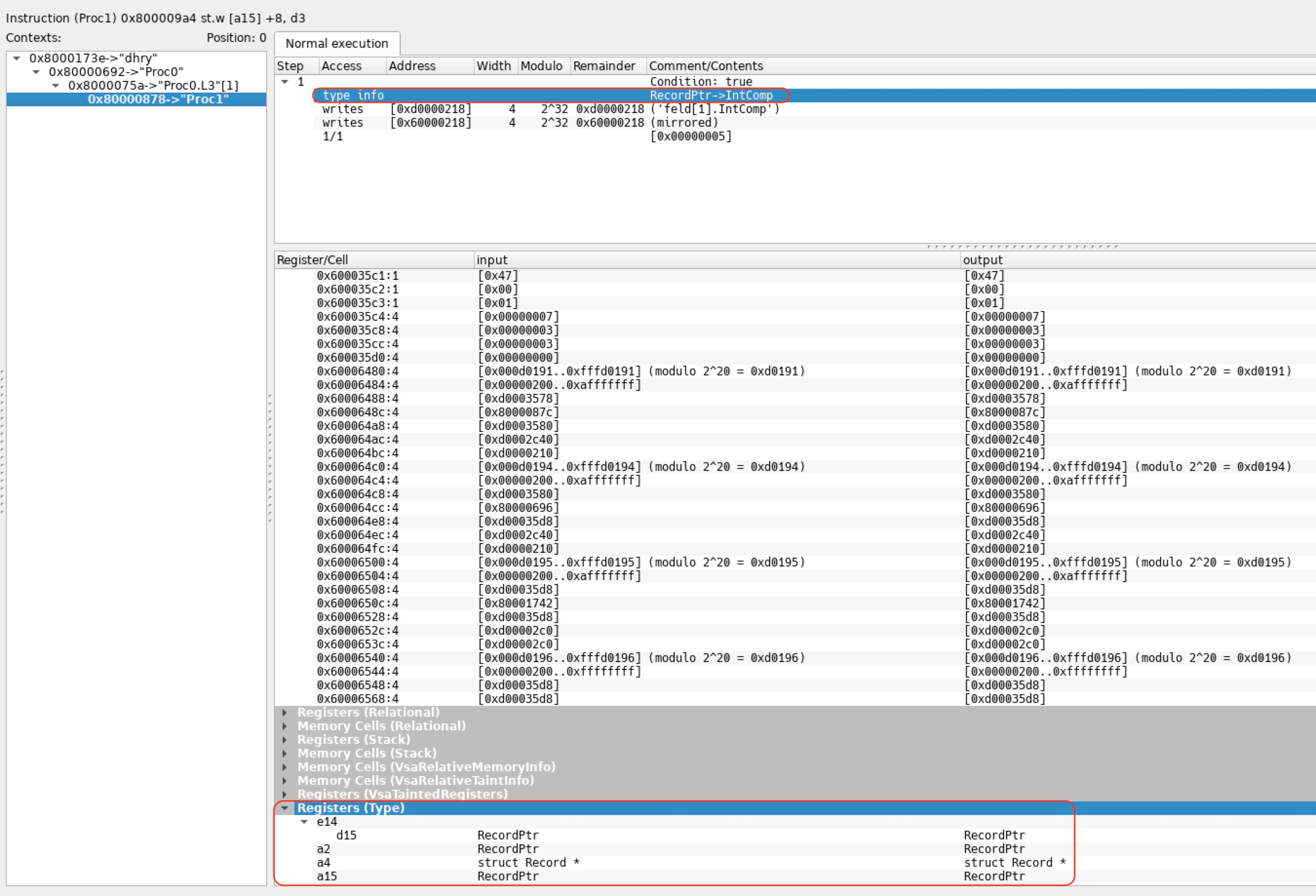

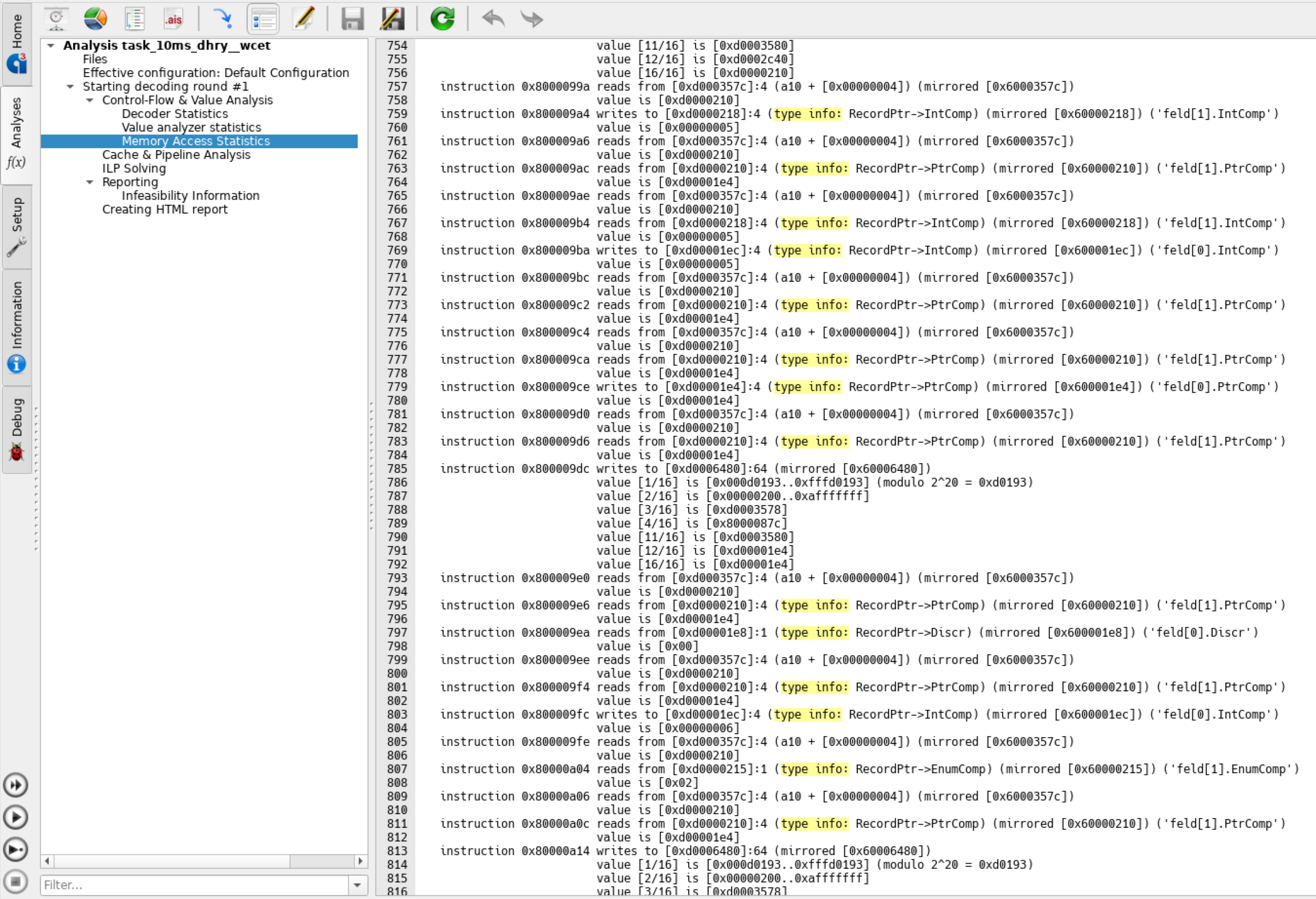

Improved value analysis

The interactive value analysis now shows the types of values stored in registers and memory cells based on the type information obtained from DWARF debug info.



ał screenshot

Improved statistics

  • Improved tooltips.
  • All percentages are now rounded to two decimal places.
  • The WCET-per-context view now allows sorting by routine name from the context menu of the corresponding column.

ał screenshot

Improved TriCore configuration

  • The value of PSW.IO at the analysis begin can now be specified in the GUI.
  • When “Generic TriCore v1.6.x” is selected with no specific core specified under hardware options, the analysis now automatically assumes the value of the register CORE_ID to be [0,1,2,3,4,6].
