a³ release 24.04

Improved search

Improved graphs

Quick navigation via Ctrl + P

Analysis dependency graphs

Flow coverage stats

New targets

  • Preview version of aiT for 3rd GEN AURIX 499 (AA-step).
  • TimingProfiler for TriCore now supports generic TCv1.8.

AbsInt License Manager (ALM)

  • Improved logging into the License Manager when no tokens of the requested type are available.
  • Value analysis in interactive mode now only requires one token.
  • If you are upgrading your client from a release older than 23.10, you will need to upgrade your License Manager as well. This is due to the new TLS-encrypted connection between the client and the License Manager that was first introduced in release 23.10.

General improvements

  • Faster analyses and reduced memory consumption for projects with many configurations.
  • Improved support archive creation.

Improved ORTI support

  • Improved project import with better handling of vendor-specific extensions.
  • Improved heuristics to determine task and ISR entry points.

Wayland support

Added support for client-side decorations.

GUI

  • New theme for all icons.
  • The option “strip compilation path” is now disabled by default.
  • Configurations now allow overwriting more decoding settings such as instruction set, CPU variant etc.

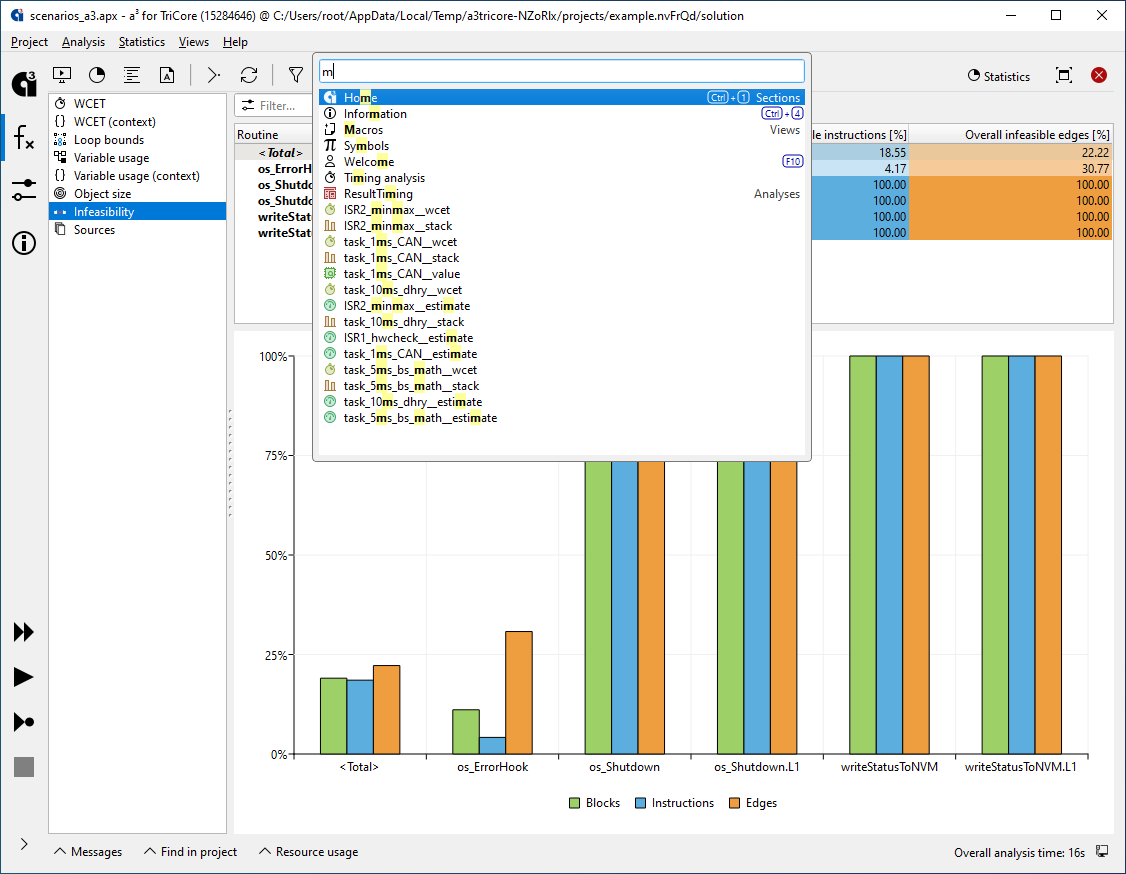

  • New go-to-anywhere HUD for quick navigation in the current project, accessible via Ctrl + P.

Visualization and results

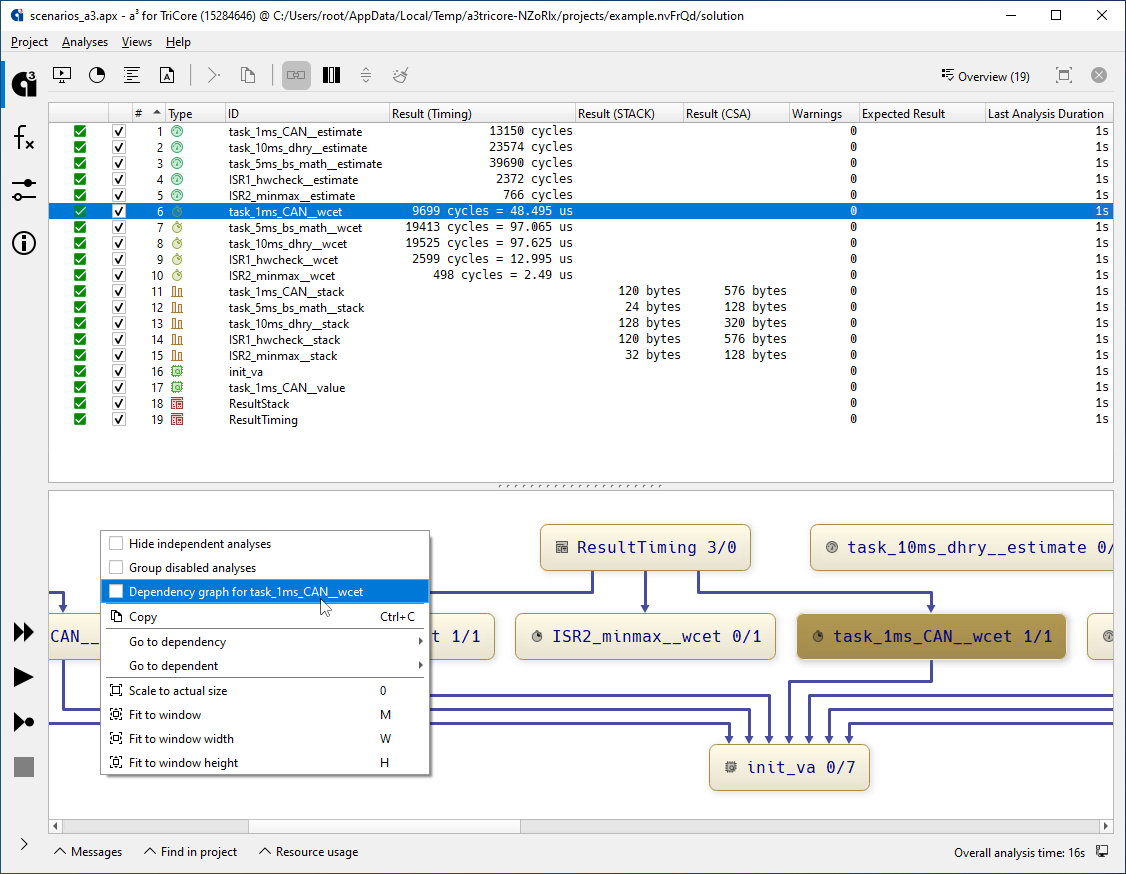

  • The Analyses overview can now visualize the dependencies between all the individual analysis items.

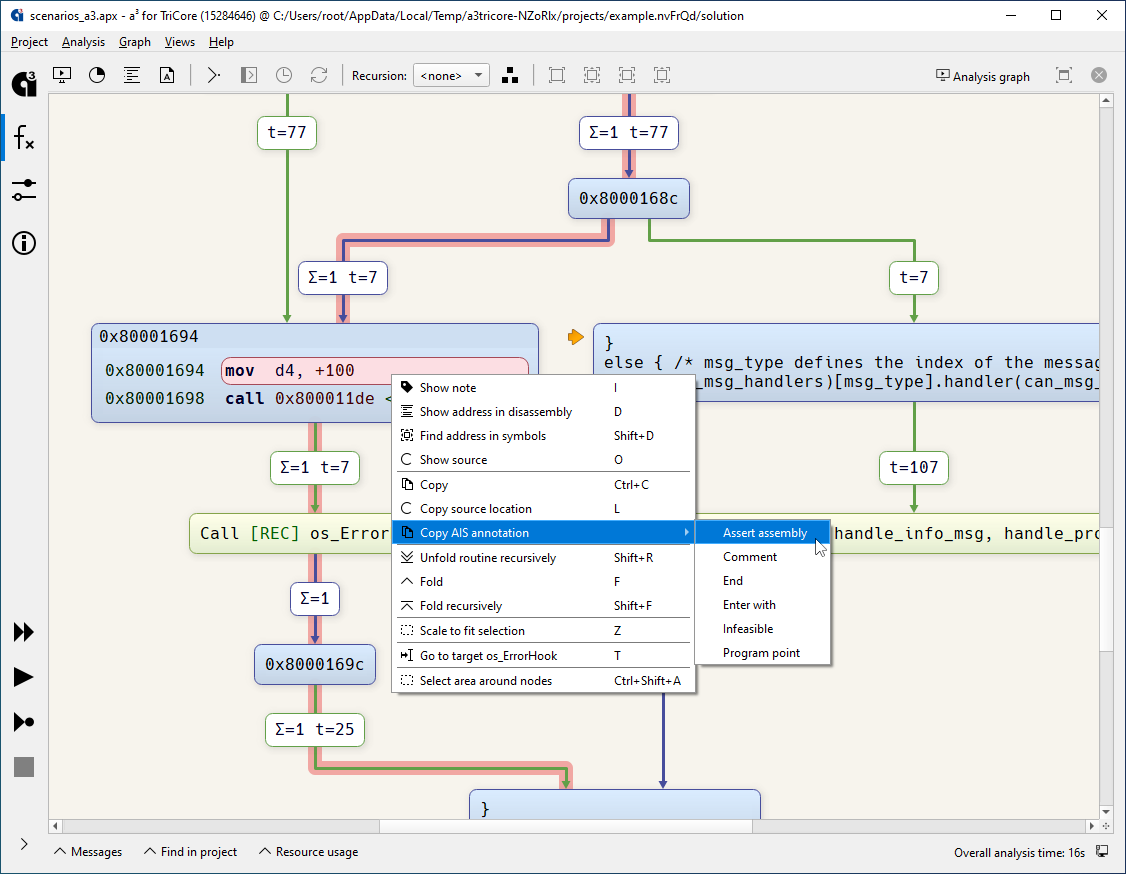

  • In the Graph view, the context-menu action “Copy AIS annotation” now allows to create “assert assembly” annotations for each instruction.
  • The context menu entry “Show loop statistics” in the Graph view now honors the selection of an active context and jumps directly to this context in the Statistics view.

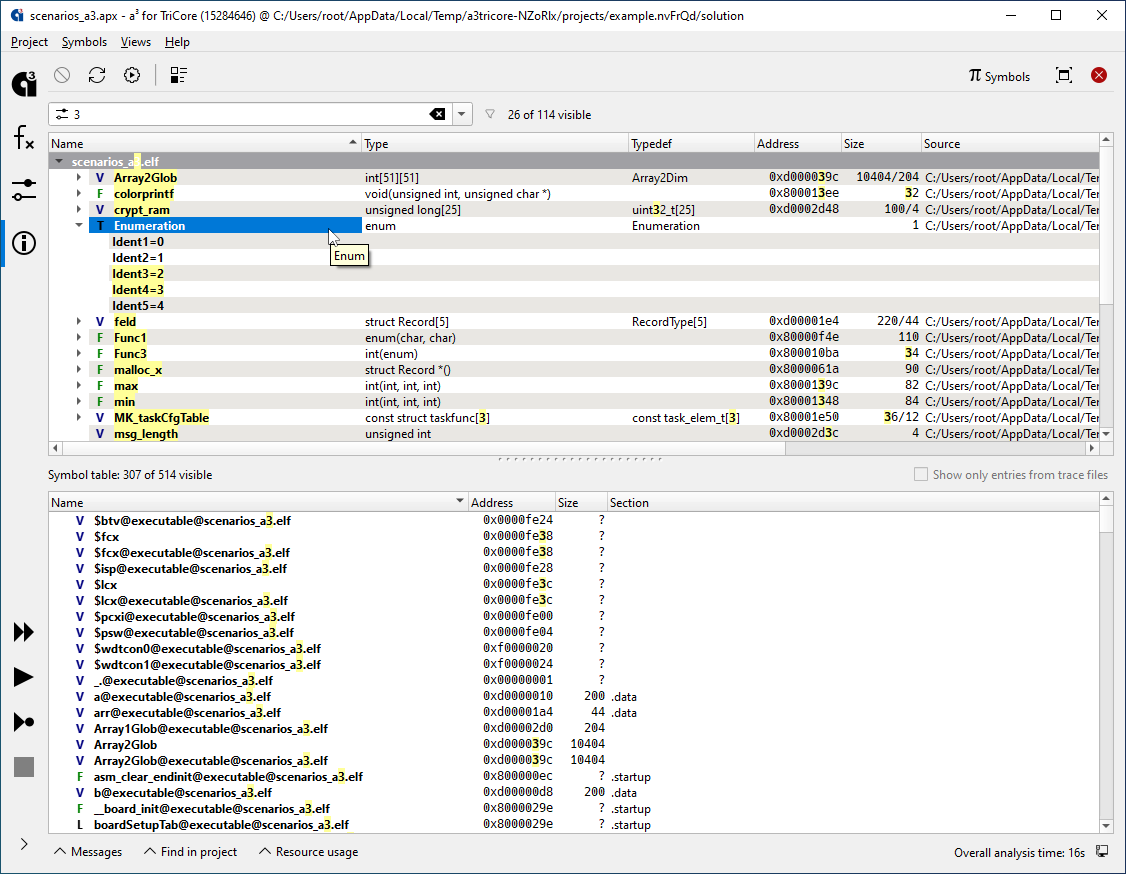

  • The Symbols view can now be searched for enumerator values.

Annotations

  • For a program point offset specification that uses a combination of instruction classes, the decoder now checks whether the combination is actually feasible. In other words, each program point specification may only feature:
    • at most one of branch, call, or return
    • at most one of conditional or unconditional
    • at most one of access or read
    • at most one of access or write
  • Improved evaluation of number_of_parameters and index_of_parameter.
  • Improved handling of trace functors nested within expressions that are evaluated during the value analysis phase.

Decoding

  • Introduced demangling of Rust symbols using the clang Rust symbol demangler.
  • zstd-compressed input files are now automatically decompressed.
  • Support for zstd-compressed data dictionary XML files.
  • Improved reading of sections for IEEE-695 files. The full section content is now read, and only executable sections are now marked as code.

DWARF

  • Support for DWARF debug information for Rust.
  • The decoder now utilizes the DW_AT_noreturn flag for routines to identify whether they never return to the callee.

Reporting

In the XML results file, the possible values for expectation and analysis_status are now success or fail (rather than true or false).

Value analysis

  • The value analysis now avoids dereferencing NULL pointers and removes the value NULL from the associated base registers. These are identified by means of the DWARF debug information and the types associated with the base register. If such a NULL pointer dereference is detected, this is reported appropriately in the textual report.
    This heuristic is only active if “Use only safe patterns” and “Extract debug information” are enabled under Setup → Decoding.
  • Improved checking for infeasible control flow by combining relational and value set information with knowledge of taken branch conditions.
  • Improved detection of infeasibility for register content contradictions.
  • Improved handling of stack-relative memory information.

PowerPC

  • Improved automatic switch table decoding and TOC detection for 64-bit DiabData binaries.
  • Improved user manual:
    • Clarified that guarded memory regions are not supported for MPC5777.
    • Clarified memory-access alignment restrictions for MPC7448.
  • Definite misaligned accesses for MPC7448 now trigger a warning.

TriCore

  • Reworked instruction type classifications.
    • SYSCALL, TRAPV, TRAPSV, TRAPINV, SVLCX, and BISR perform a read access to determine the new value of register FCX and a write access to save the lower or upper context on the CSA stack. The write access is now also modeled in the decoder. The read access is now modeled in the decoder and the value analysis.
    • MTCR and MTDCR perform a write access to the memory mapped Core SFR (CSFR) space. This write access is now also modeled for the value analysis.
    • RET and RFE perform a read access to restore the upper context registers from the CSA stack and a write access to update free context list. These read and write accesses are now also modeled in the decoder.
    • RSLCX performs a read access to restore the lower context registers from the CSA stack and a write access to update free context list. These read and write accesses are now also modeled in the decoder.
    • STLCX and STUCX perform a write access to store the lower/upper context registers in memory. This write access is now also modeled in the decoder.
    • FCALL, FCALLA, and FCALLI perform a write access to save the contents of the link register on the user stack. This write access is now also modeled in the decoder.
    • FRET performs a read access to restore the contents of the link register from the user stack. This read access is now also modeled in the decoder.
    • ST.T performs a read and a write access to change a single bit in memory. These read and write accesses are now also modeled in the decoder.

    These changes can affect AIS2 annotations that use -> read(n), -> write(n) , or -> access(n) to locate a program point if they span over the aforementioned instructions.

  • For AURIX, the CSFR core_id is now modeled directly as a register instead of being memory-mapped. Thus, it can now be used in AIS2 expressions via reg("core_id").
  • Improved handling of:
    • TRAPINV
    • division by zero
    • CSA chain initialization in OS code
    • core-local code and data scratch pad memories for generic AURIX
  • Improved automatic switch table decoding for GCC.

Other target architectures

  • Am486: Bus jitter is now kept concrete to improve analysis precision.
  • HCS12(X): Correct memory accesses for fuzzy logic instructions.
  • M68k: Improved automatic switch table decoding for Microtec.
  • S12Z: Improved automatic switch table decoding for CodeWarrior.

TimeWeaver

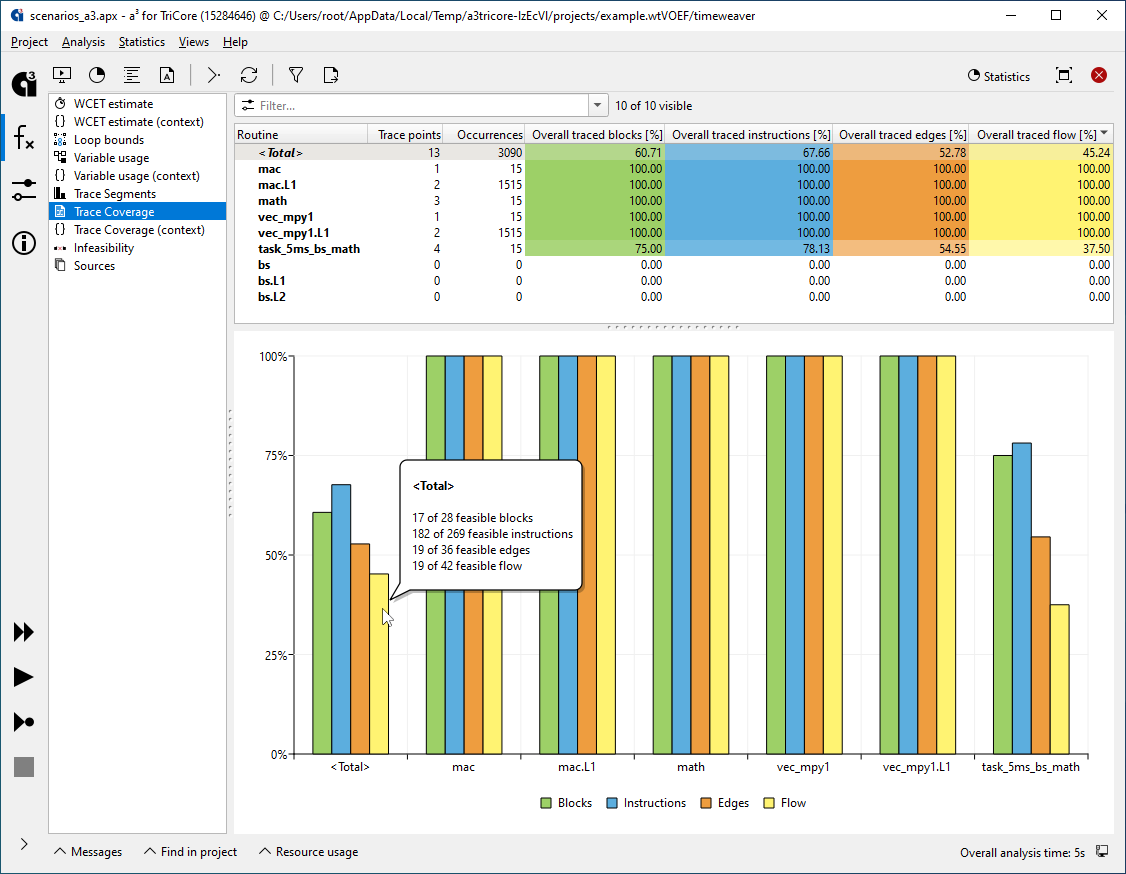

  • Trace coverage statistics now include flow coverage. This information can be used to identify bad trace coverage by determining how many outgoing edges have been traced per incoming edge of a basic block.
  • Improved trace coverage statistics for external routines.
  • Improved handling of trace snippet starts, and improved end handling for block-level traces.
  • Improved handling of user-annotated end points.
  • Improved visualization of trace segments that start or end in external routines.
  • General improvements to trace segment visualization.
  • Improved support for ARM ULINKpro CSV traces.

Qualification Support Kits

  • New packages:
    • QSK for StackAnalyzer for PPC (instruction set 64, generic)
    • QSK for StackAnalyzer for PPC (instruction set 64, compiler-specific: diab-5.9.7.1)
  • New test case qk_ais2_computed_targets for all architectures. It combines and supersedes the test cases qk_ais2_computed_*_targets, and additionally checks for the new AIS2 annotation targets.
  • Traval-based measurement test cases have been optimized to no longer perform an unnecessary aiT analysis.
  • Compiler-specific test cases that only deal with decoding results have been optimized to only perform value analyses rather than unnecessary timing or stack analyses.
  • The AIS2 attribute core_id is now only checked for the target types that export it.
  • Added a missing header file for stack measurement test cases.
