Astrée release 16.10

  • The Windows version now makes use of certain libraries it did not rely on before. Should you get a message about missing libraries on first startup, simply install the Visual C++ redistributable from Microsoft.
  • Jenkins logo
    We now offer a free plugin for automatic integration of Astrée in Jenkins, the leading open-source automation server.
  • The alauncher executable is now used for automation of Astrée and a³ (running analyses in batch mode, e.g. within continuous-integration systems). It provides a verbose --help.
  • The Safety Manual now also covers regulations for medical devices, in particular the FDA Principles of Software Validation, and describes qualified tool workflows for Astrée and a³.
  • This stable release incorporates the changes previously released as intermediate patches for release 16.04.


  • Analysis precision has been improved in a number of ways:
    • Modified the widening strategy for higher precision.
    • Improved precision of casts from integer to floats when the integer is known not to be 0.
    • More precise reachability information for expressions with side effects. Expressions and statements that contain a sub-expression that is non-returning — e.g. a call to exit() or a compound expression containing jump statements — are not marked unreachable anymore.
    • Higher precision for dynamically allocated memory when using Astrée’s function substitution feature.
    • Malloc call sites can now be distinguished using loop unrolling directives. This leads to a more precise analysis of the values stored in the dynamically allocated memory, and a finer tracking of freed memory.
  • Analyses no longer stop upon encountering undeclared absolute addresses. Instead, all values written to any un­declared absolute addresses are collected and used for any read to an undeclared absolute address. In addition, when undeclared absolute addresses are encountered, a list of suggested directives that would cover such accesses is provided.
  • Modified the iteration scheme for parallel processes to improve efficiency when analyzing asynchronous code.
  • Fixed a widening issue that could cause very long analysis times when iterating over asynchronous processes or context-insensitively analyzed functions.
  • Fixed analysis of expressions of the form sizeof(&*a) where a is of type array.

Stub libraries

The OS stubs for OSEK now provide more efficient implementations of the functions

  • EnableAllInterrupts
  • DisableAllInterrupts
  • SuspendAllInterrupts
  • ResumeAllInterrupts
  • SuspendOSInterrupts
  • ResumeOSInterrupts

In addition, the effect of these functions is now more precisely captured by the analyzer when the new Process priority domain is enabled (precise-priorities=yes).


  • The server can now be locked in the server controller, such that no further analyses can be queued or started. This is useful e.g. when preparing for planned server shutdowns or upgrades.
  • The server now also reports the license features that are enabled by the configured license file. This information is written to stdout as well as to the server log file.

C frontend

  • Reduced memory consumption when analyzing code that contains many unused static or inline function definitions.
  • Added support for linking incomplete and complete enum tags to allow the forward declaration of enums.
  • Type compatibility rules have been modified as follows:
    • arithmetic types of same size and signedness are no longer compatible if they are not equal
    • the plain char type is no longer compatible with signed or unsigned char
    • function types without prototype are now compatible to function types with prototype according to the conditions given in ISO/IEC 9899:1999
    This modification affects incompatible type warnings of the C frontend, as well as checks of MISRA-C:2004 rule 8.4 (type-compatibility) and MISRA-C:2012 Appendix 1 rule 21.15 (memory-function-compatible).

Original-source frontend

  • Added support for command-line macros with a replacement starting with =, e.g. -DEQ===.
  • Fixed argument substitution for operands of # and ##. The frontend now takes the original tokens of the argument instead of the expanded ones if the parameter instance is operand to one of the respective operators.
  • The original-source frontend now supports preprocessor macros like
    #define B(X) X
    #define A B
    where a macro name A expands to another macro name B with the macro argument list for B lying outside of the expansion result of A.
  • The list of patterns to ignore (which is part of the parser configuration) is now also applied to preprocessor directives in original-source files. Matching patterns are removed before checking coding rules.

Known issues

  • In order to update already existing preprocessed files on the server after preprocessing, at least one of the following options must be set:
    • Synchronize preprocessed files” under Project → Preferences
    • Remove analysis files before importing preprocessed files” under Configuration → Preprocessor
  • In batch mode, the coverage information is missing from the XML result file unless it is needed to generate some reports.
  • When using the ABI option rounding_mode=to_nearest, the analysis might stop in some contexts when evaluating a guard expression that involves a binary operation on floats.
  • When using the option exclude-signed-in-unsigned-overflows (“Do not raise overflow alarms on unsigned computations with signed values”), the analyzer might crash in certain scenarios.

The last two issues are fixed in Release 16.10 Patch 1 (build 271444).

Data Flow view

The new Data Flow view in the Results area displays all data flow information collected by the analyzer. All accesses to global/static variables are shown, with information about whether they are shared or involved in a data race, what kind of access it is, and from which function or process it originates. The context menu in this view gives access to the corresponding code locations.

You can interactively query the data flow information based on a selection of relevant variables, functions, and processes. These queries are applied as filters to the Data Flow view. This is particularly helpful for identifying all processes and accesses contributing to a data race.

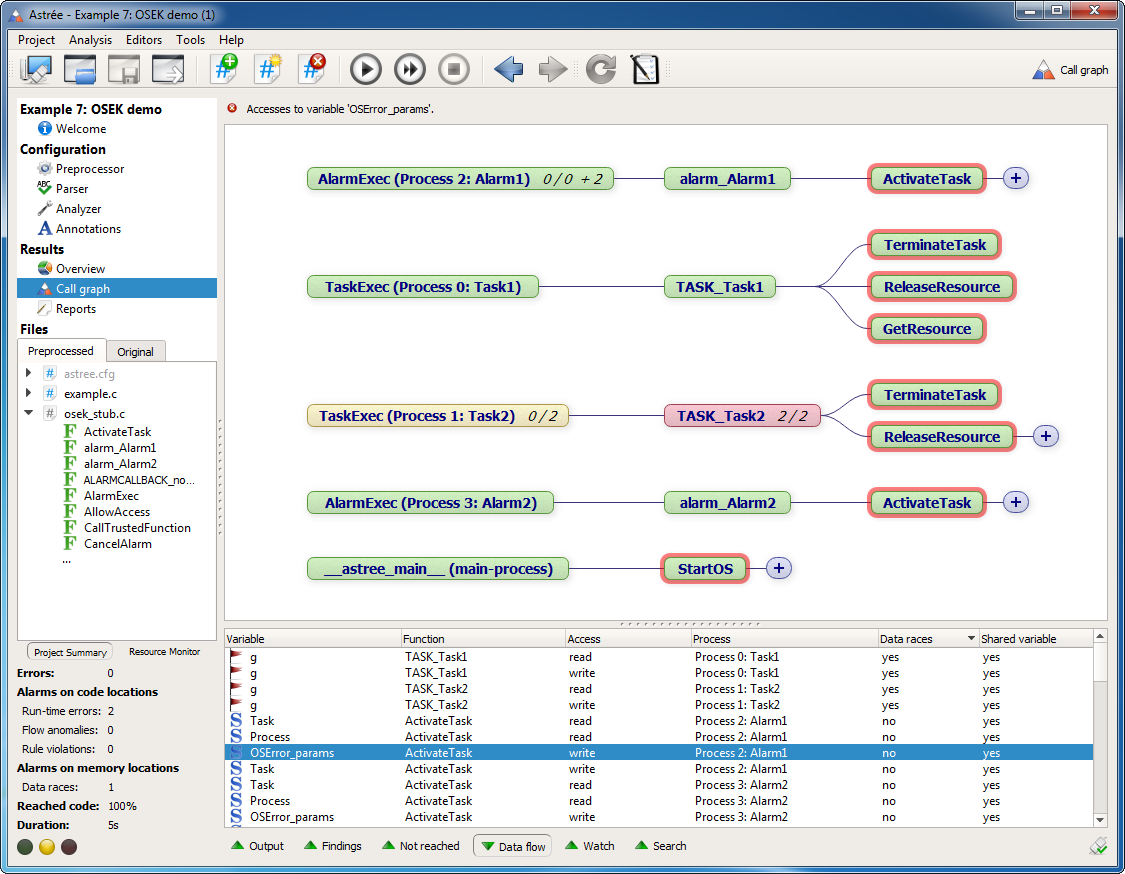

Call graphs

The Call Graph view can now show all possible call paths for accesses to global variables. This feature is activated in the Data Flow view via the context menu entries “Display in graph” and “Display variable in graph”. It is particularly useful when investigating shared variables and data race alarms.

Editor views

  • Analyzed code lines without errors or alarms of type A, B, or C are now marked in green. These lines are proven to be free of runtime errors and data races under the assumptions made by the analyzer.
  • Exclamation marks denote code lines for which there are alarms of type A, B, C, D, R, or other notifications. Clicking on an exclamation mark takes you to the corresponding findings in the Findings view.
  • The availability of invariants for display in the Watch view is now denoted by blue line numbers rather than a blue bar.


  • The files list in the Results → Overview → Filter view can now be filtered for occurrences of text strings or regular expressions. This enables long file lists to be quickly filtered to match your criteria.
  • The list of analysis projects in the “Open project” dialog can now be filtered by pressing Ctrl+F.
  • Improved filtering in the Findings view now requires fewer clicks for displaying the list of findings without comment.
  • The type filter in the Findings view is no longer reset to default when starting an analysis.

Wrapper generator

  • You can now generate a wrapper with initialization functions only, but without tasks.
  • For asynchronous execution models, the wrapper generator now generates entry code that uses the analyzer intrinsic functions __astree_create_process() and __astree_start_process() instead of the no longer supported __ASTREE_asynchronous_loop directive. Consequently, the wrapper generator takes an optional priority argument for tasks and task entry functions can no longer take parameters.
  • The wrapper generator now warns before overwriting an existing wrapper-and-stubs file. It then also offers the option of appending the new code to the existing wrapper-and-stubs file, rather than overwriting its contents.

Other changes to the GUI

  • An overview of analysis time broken down by different project parts is now available under Tools → Analysis time. It can be accessed as soon as the analysis has started and is updated on-the-fly.
  • The Report view has been redesigned. Directories and file names for report files can now be freely chosen, like in the DAX <report> specification. Moreover, it is now possible to define and generate customized HTML reports. For further details, see the Results tab of these release notes.
  • Simplified the configuration of rule checks. It is now easier to activate rules within deactivated sections and to enable or disable categories of MISRA rules (Required, Advisory, etc.).
  • Removed the extra stop button from the Preprocessing view. The preprocessing can now be stopped by the stop button in the toolbar that is also used for stopping the analysis.
  • Improved value tooltips: for expressions of the form a->b the GUI now displays not only a tooltip for the whole expression a->b but also for the sub-expression a. Moreover, it now also shows the values of indices in array accesses (e.g. a[i]) even if such expressions appear on the left-hand side of assignments.
  • The memory usage graph in the resource monitor now covers the entire duration of the analysis.
  • Improved the ordering of revisions in the result difference charts of the Differences viewer. They are now ordered by analysis start time.
  • Fixed loading original source files with file names containing special characters (like é or ì).
  • Improved responsiveness and reduced memory consumption of the client GUI for analysis projects with millions of functions.
  • Improved the import of AAL annotations. It now ignores all annotation file contents that do not appear inside of an __ASTREE_annotation block.
  • If the DAX export option “ExportAll” is selected, the GUI now also exports rules with parameters displayed as <empty>.
  • When a location is highlighted in the editor, e.g. by clicking on an alarm in the Findings view, the location is now centered in the editor.
  • Improved performance when commenting alarms in analysis projects containing large files with many declarations.
  • Improved error reporting in case of an expired license file.
  • Removed the “Generate annotations” button from the Findings view. Generating the annotations is now part of the Project → Save action which is also accessible from the toolbar or via the global Ctrl+S keyboard shortcut.
  • The collapsed or expanded state of elements in the annotations view is no longer reset by delete or insert operations.
  • The “Copy part” mode for copying parts of an analyzer message from the Output view can now also be entered by double-clicking on a line.
  • The differences viewer for comparing revisions of analysis projects now differentiates between the different kinds of findings: runtime errors, data races, rule violations, etc.
  • Fixed the global counter for memory locations involved in data races, which is displayed in the Summary area. (In certain rare cases, this number was too small.)

Improved and extended reports

  • New customizable HTML reports that can be configured in both the GUI and in DAX. The configuration options provide all reporting features of the XML summary reports and additional options that correspond to the different operating modes of the Overview view in the GUI.
  • The result summary in the analyzer log now also displays the number of proven statements:
    /* Result summary */
    Reached code: 98 % (51/52 statements reached, 45/51 (88 %) statements proven)
    A statement is proven if it is reached by the analysis and does not cause an error or an alarm of type A, B or C.
  • Error messages about incompatible types are now added to the error summary counter of the analyzer, which is printed in the text report and the Output view in the GUI.
  • The analyzer now also outputs the patterns to ignore and external declarations of the parser configuration:
    /* Filter patterns */
    function: asm void
    identifier: __compiler_extension__
    regexp: asm([^)]+);
    identifier: asm
    /* External declarations */
    type: my_type;
    declaration: my_type my_function(my_type, int);
  • Improved reporting of potentially shared variables. The analyzer now prints a detailed list of all variables that may be accessed from more than one process. The corresponding option report-shared-variables is now active by default.
    /* Possibly shared variables */
    'Process' at osek_stub.c:890.20-27
     | read/written in Process 0: Task1  |
     | read/written in Process 1: Task2  |
     | read         in Process 2: Alarm1 |
     | read         in Process 3: Alarm2 |
  • Added new output of deadlock cycles and alarms about deadlocks.
    ALARM (D): lock operation can cause a deadlock (deadlock-cycle #1: process 0 locks 0, process 1 locks 1) at ...
    ALARM (D): lock operation can cause a deadlock (deadlock-cycle #1: process 0 locks 0, process 1 locks 1) at ...
    The deadlock cycles that these alarms belong to are displayed in the Output view of the GUI and in the text report:
    ----- deadlock-cycle #1: ----------
    [ at ...
      participant: [process 0, locked: {1} ] lock 0]
    [ at ...
      participant: [process 1, locked: {0} ] lock 1]
    A deadlock cycle is a list of processes in a given state trying to acquire a lock which is taken by another element of the list. Each element of the list is printed with relevant context information (call stack and position in the code where the lock is taken). The new alarms and output are disabled by default and can be activated by the new option warn-on-deadlocks=yes.
  • Alarm messages about data races now indicate whether the access path is volatile and atomic.
    ALARM (B): write-write data-race on atomic access in assignment 2 byte(s) at ...
    Alarm messages with the additional information “on atomic access” are exactly those data races that are not reported if the new option warn-on-atomic-volatile-data-race is disabled.
  • The parsing phase of the analyzer now ends with the line
    Parsed X physical lines of preprocessed code
    where X is the number of preprocessed source lines containing at least one non-whitespace C token, excluding line directives and filtered code. This line is also contained in the text report file.
  • Alarms about "Wrong range of second shift argument" have been moved from the category "Invalid ranges and overflows" to the new category "Invalid shift argument". This modification affects the GUI and the XML report file.
  • Added a new category of alarms named “Overflow in conversion (with unpredictable results)” for collecting float-to-integer conversions that overflow the range of the target integer. The type of such overflow alarms has been changed to A. After the overflow, the analyzer continues with the full range of the target integer type.
  • Astrée now raises additional alarms when comparing or copying dangling pointers. The result of copying a dangling pointer is an invalid pointer. For example, analyzing the following code
    char* ptr = (char*)malloc(42);
    if (ptr != NULL) {
    results in the alarm message
    ALARM (A): use of dangling pointer { DANGLING: <memory-block> } at <location>
    where <memory-block> is the internal name of the memory block that the pointer points to and <location> specifies the file, line and column number where the pointer is used.
  • The analyzer now distinguishes consistently between an expression of the form &*e and its sub-expression e. If both expressions raise alarms, these alarms will no longer be coalesced to the same code location for the purpose of counting alarms per code location.
  • Improved the display of invariants for bitfields in tooltips and __ASTREE_log_vars to use proper names. That is, for code of the form
    struct { char a:4; char b:4;} x;
    x.b = 2;
    the information for x.b is now displayed as x.b in {2}.
  • The Astree XML Result File format now has an XML schema definition file, to be found at
  • Invalid AAL paths for alarm comments are no longer reported as errors, but merely as notifications. The change was made because comments have no effect on the program semantics assumed by the analyzer. Invalid AAL paths used for inserting other directives are still reported as errors.
  • The analyzer’s progress message for global iterations no longer distinguishes between parallel and separate analysis modes. Here is the new output for such iterations as displayed in the Output view and text report:
    global iter #5
    global iter #5 (widened)
  • The XML report now also contains the parser configuration, i.e. the list of external declarations and patterns to ignore.
      <pattern type="function">foobar</pattern>
      <pattern type="identifier">foo</pattern>
      <pattern type="regexp">bar.*</pattern>
      <pattern type="pragma-asm">yes</pattern>
      <external_declaration type="type">T;</external_declaration>
      <external_declaration type="declaration">T x;</external_declaration>
  • The XML report may now contain alarm messages without location information. Currently the only alarms of this kind are violations of MISRA-C:2004 rule 21.1 and MISRA-C:2012 rule D.4.1 in cases where the rule check analysis-run fails.
  • The message
    NOTE: translate_warning(type): conversion from floating-point to integer: from <TYPE> to <TYPE> at <LOCATION>
    has been removed. Instead we recommend activating the MISRA-C:2012 rule 10.3 or the MISRA-C:2004 rule 10.2.
  • If the right-hand side of a logical expression is reached by the analyzer, it is now always properly marked as reached.
  • Fixed the global counter for memory locations involved in data races in the XML report file., i.e. the number given in the data_races attribute of the <summary> tag. (In certain rare cases, this number was too small.)

Code metrics

  • Statement expressions (GCC compiler extension) are now taken into account when computing metrics. In the computation of the metric “Language scope” they are considered to be operators.
  • The code metric LSCOPE (language scope) now also takes into account the semicolon of null statements and statements in implicit control blocks (like branches of an if statement that are not enclosed in brackets).

Standalone RuleChecker

Most of the supported MISRA rules can now be checked for without running the runtime error analysis (skip-analysis=yes):

  • The check for recursion now has two implementations with varying precision that are chosen depending on the value of skip-analysis.
  • The new check controlling-invariant-expression, associated with MISRA-C:2004 rule 4.1 and MISRA-C:2012 rule 2.1, provides a partial coverage for those rules without runtime error analysis.
  • Likewise, the check uninitialized-variable-use (rule 9.1 of both MISRA-C:2004 and MISRA-C:2012) checks for missing initializers if the runtime error analysis is disabled.
  • The following checks have been split in two to gain a partial check that does not rely on the analysis:


  • Added support for rule 18.2.
  • The following rule checks have been added to cover the aspect of “implementational limits” (as defined in ISO/IEC 9899:1990 p2.2.4.1) of rule 1.1:
    • max-arguments-macro
    • max-case-labels
    • max-condition-nesting
    • max-declarator-depth
    • max-declarator-nesting
    • max-enums
    • max-expression-nesting
    • max-externals
    • max-include-nesting
    • max-locals
    • max-logical-line-length
    • max-macros-defined
    • max-members
    • max-parameters
    • max-parameters-macro
    • max-statement-nesting
    • max-string-length
    • max-struct-nesting
    • parameters
  • New checks for rule 15.0:
    • switch-skipped-code
      warns about statements or declarations preceding the first switch clause
    • switch-clause-empty-compound
      warns about switch clauses consisting of only an empty compound statement, e.g. default: {}
  • Fixed checks for rule 8.4. See the section on the C frontend for further details.
  • The check function-return-type has been moved from rule 8.1 to rule 8.2.
  • The checks for rule 8.1 now also warn about implicit function declarations and function definitions without a preceding declaration of that function.
  • The check evaluation-order for rule 12.2 is now also performed in initializer expressions.
  • The check for rule 11.3 has been improved to also cover implicit conversions.


  • Amendment 1 is now supported, which adds new rules and modifies rule 21.8. The new rules use the prefix M2012A1 followed by the MISRA rule number.
  • Added support for rule 19.1.
  • New checks for rule 16.1:
    • switch-skipped-code
      warns about statements or declarations preceding the first switch clause
    • switch-clause-empty-compound
      warns about switch clauses consisting of only an empty compound statement, e.g. default: {}
  • Read accesses are now only treated as persistent side effects if they are syntactically volatile. This affects rules 13.1, 13.2, 13.5, and 14.2.
  • Fixed check for-loop-condition-sideeffect for the case when the third expression of a for-loop is missing. This affects rule 14.2.
  • Fixed check side-effect-in-initializer-list for initializer lists with a single element. This affects rule 13.1.
  • The check evaluation-order for rule 13.2 is now also performed in initializer expressions.
  • The check function-return-type has been moved from rule 8.2 to rule 8.1.
  • Fixed false alarm about violation of rule 6.2 when using the _Bool type.
  • Fixed false alarms about violation of rule 13.3 when performing the check unary-assign-detachment in combination with volatile variables.
  • The checks for rules 11.1 and 11.4 have been improved to also cover implicit conversions.

Both rule sets

The checks for the MISRA-C:2004 rules 11.4 and 11.5 and for the MISRA-C:2012 rules 11.3, 11.6, 11.7, and 11.8 have been extended to cover implicit conversions.

  • Added the checks
    • pointer-qualifier-cast-implicit
    • inappropriate-pointer-cast-implicit
    • object-pointer-diff-cast-implicit
    • object-pointer-diff-cast-strict-implicit
  • Split the check
  • Added pointer-qualifier-cast-implicit to rule 1.1.

Customer-specific rules

  • Fixed false alarm in rule X.A.4.8 for comment sequences of the form
    /* comment1 *//* comment2
     * comment2 continued */
  • Corrected documentation of rule X.A.3.9.
  • The rule X.A.4.3 can now be modified by a regular expression parameter.

Extensions of the DAX format

  • New DAX version 1.3.
  • External declarations are now specified in DAX rather than in an .edf file. Here is an example that shows the new DAX tags:
      <declaration>typeA f(int)</declaration>
      <declaration>typeB g(typeA, int)</declaration>
  • The DAX export from the GUI has been adapted accordingly. Old DAX and .edf files can still be imported.
  • The ABI settings have been extended for specifying pointers of different size. Here is an example that shows all new DAX tags:
  • The ABI settings have been extended to include information about whether aligned accesses to the different basic data types are atomic:
    ABI keyDAX tag
    Information about atomically accessible data types has been added to the pre-defined ABIs where appropriate.
  • For asynchronous execution models, the parameters attribute of the <task> tag in the <wrapper> section has been replaced by a new priority attribute:
      <task priority="50">Task0</task>
      <task priority="100">Task1</task>
  • The DAX format has been extended by a <report-configuration> section that allows the definition of customized reports. The extension is defined in a separate XML schema that is included by the XML schema for DAX. The schema can be found at

Updates to the TargetLink coupling

TargetLink logo
  • The TargetLink importer settings are now shared between all clients. For analysis projects created with older versions of Astrée, the settings are taken from the first user that opens the old project and then saves it.
  • Import Result from XTC File” now puts the result into a new AbsIntAnalysisResults element of the function instead of writing to the function’s properties directly.
  • Missing source files are no longer added to the analysis configuration. Instead the toolbox prints a warning message.
  • The Astrée Server Settings dialog now also lists Astrée versions that were not installed in the default location.
  • The Data Dictionary file in the TargetLink Data Dictionary Importer file can now be specified using a relative path. Relative paths are extended with the global base directory specified in the Preprocessor view.

Jenkins and Eclipse plugins

Jenkins logo Eclipse logo

Batch mode

  • Progress information is now printed to stdout:
    Progress: [13:45:13]: Processing DAX...
    Progress: [13:45:13]: Importing...
    Progress: [13:45:14]: Analyzing...
    Progress: [13:45:30]: Analysis done...
  • For any error that occurs during preprocessing, the text report file now includes the preprocessor command line that caused it.

General configuration

Modified the interpretation of preprocessing configurations w.r.t. the use of relative paths as their base directory. Such paths are now extended by prepending the base directories of all parent configurations up to the global base directory. This path extension terminates at the first base directory that is specified as an absolute path. Example:

  <config name="libs">
      <config name="extra files">

This DAX configuration specifies the following file for preprocessing:


The same path extension is also applied to include paths and is also performed when configuring the preprocessor in the GUI.


  • New options:
    • precise-priorities (default no)
      Only applies to analyses of concurrent software. Activates a new domain for more precise handling of process priorities including dynamic priorities (e.g. according to the Priority Ceiling Protocol). Generally this leads to higher analysis times, but yields significantly more precise results.
    • warn-on-deadlocks (default no)
      Activates detection of deadlocks in asynchronous software. See the Results tab of these release notes for further details.
    • warn-on-atomic-volatile-data-race (default yes)
      When this option is set to no, no data race will be reported for accesses to memory through lvalues that are qualified as volatile and have a type declared as atomic in the ABI specifications. This is particularly useful for analyzing lock-free implementations of concurrent behavior.
    • at-location (enabled by default)
      Controls whether Astrée supports @<address> declarations (compiler extension) for data placement at an absolute location. If enabled, the analyzer considers the following declaration
      int i @0x1234;
      to be equivalent to
      int i;
      __ASTREE_absolute_address((i, 0x1234));
      That is, the declared variable is known to be allocated to the given absolute address. The address can also be specified as a constant expression.
    • It is now possible to specify how bitfields should be treated with respect to data races. By default, concurrent bitfield accesses within the same byte are reported as data races. When using the new option bitfield-data-race-enclosing-bytes-only=no, bitfield accesses are considered to interact with all bitfields contained within the boundaries of the type used in their definition.
  • Removed options:
    • automatic-shared-variables
      Shared variables are now always automatically detected.
    • constant-propagation
      Constant propagation is now always used when evaluating constant expressions. In addition, it is used for source code simplification if the simplify option is enabled. That is, simplify=yes now behaves like simplify=yes constant-propagation=yes in earlier releases.
  • The option partition-pt1 now takes an integer value as argument instead of the previous yes/no. The integer value specifies into how many partitions the values of PT1 filters are divided by the analyzer. The default value is 3, which was the value used with partition-pt1=yes in earlier Astrée releases. Values less than 2 disable partitioning of PT1 filters. Values greater than 3 increase precision up to a certain limit. When converting old analysis projects or importing them via AAF or DAX, the old value yes is automatically converted into 3, while no is converted into 0.
  • The default value of stop-parse-error-immediate has been changed to no, i.e. the option is now disabled by default.
  • With the option stop-parse-error-immediate=no, parse errors no longer stop the rule checking on preprocessed files completely. Instead it is performed on all successfully parsed files.


  • The directives __ASTREE_asynchronous_loop and __ASTREE_shared_variable are not supported anymore. Asynchronous tasks should be declared using __astree_create_process and __astree_start_process.
  • The directive __ASTREE_known_range now accepts parenthesized expressions again:
    __ASTREE_known_range(( (*p)[], [0;100] ));
    This was temporarily unsupported in release 16.04.
  • The __ASTREE_absolute_address directive now accepts not only constants but also constant expressions as absolute addresses.
  • When encountering an invalid __ASTREE_absolute_address directive, the analyzer no longer stops. Instead it reports the error and carries on with the analysis. The invalid directive is ignored.
  • In release 16.04 the __ASTREE_absolute_address directive was unintentionally accepted in function scope (and ignored for function local variables). It is now strictly rejected in function scope and only allowed on the global level as documented.


  • The analyzer now supports pointers of different sizes which are provided by many compilers for accessing objects placed in different memory regions. A typical example are 'near' and 'far' pointers. To this end, the ABI settings allow the configuration of up to three additional 'attributed' pointer types. Each 'attributed' pointer has its own size, alignment, and atomicity settings. An additional list of attributes specifies the keywords that are used to declare a pointer of this kind. The given size information is used by the analyzer to calculate the correct layout of other types. The new ABI keys and DAX tags are:
    • sizeof_attributed_pointer_1
    • alignof_attributed_pointer_1
    • atomic_attributed_pointer_1
    • pointer_attributes_1
  • Updated the ABI for c166 to respect the __near, __xnear, __far, __huge, and __shuge attributes for pointers.
  • Added ABI for IAR on RL78 with data model "Near".
  • The ABI settings have been extended by information about whether aligned accesses to the different basic data types are atomic. The new ABI keys are constructed by adding the prefix atomic_ to a basic data type, e.g. atomic_bool, atomic_char, atomic_short. Information about atomically accessible data types has been added to the pre-defined ABIs where appropriate.
  • Corrected the values for the long double type in the pre-defined ppc32diab ABI.

Patch 1 (build 271444)

Fixed the following known issues:

  • When using the ABI option rounding_mode=to_nearest, older builds of the analyzer might stop in some contexts when evaluating a guard expression that involves a binary operation on floats.
  • When using the option exclude-signed-in-unsigned-overflows (“Do not raise overflow alarms on unsigned computations with signed values”), older builds of the analyzer might crash in certain scenarios.
