Easily add static timing analysis to your development process

Fully automatic analysis of TargetLink-generated code

dSPACE logo

aiT supports tight integration with TargetLink, the production-code generation tool from dSPACE.

TargetLink automatically generates production code for graphically specified functions straight from MathWorks MATLAB/Simulink/Stateflow. This drastically shortens coding and development time and contributes to a consider­able improvement in the quality of the pro­duction code.

Workflow

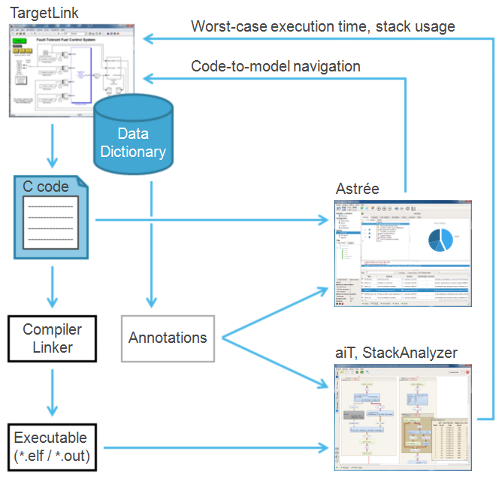

Chart depicting the automated flow between TargetLink, aiT, StackAnalyzer, and Astrée

The automated flow between TargetLink and AbsInt’s tools provides for a seamless integration into the de­velopment cycle.

AbsInt and dSPACE cooperated on the integration in the TIMMO-2-USE project that addressed the specification, transition and exchange of relevant timing information through­out different steps of the AUTOSAR-based development process and tool chain.

Your benefits

  • The worst-case execution time of each TargetLink root function, its maximum stack usage, and alarms about possible runtime errors can now be viewed directly in TargetLink.

  • By making these implementation-level properties visible at the modeling level, you can detect errors and bugs early in the development process, avoiding late-stage integration problems.

  • Static analyzers do not require the system under test to be executed on a hardware proto­type. Results are available quickly, no dedicated hardware is needed.

  • The analyzers work on the generated code and provide full control and data coverage. This enables safe upper bounds on worst-case execution time and stack usage to be computed and the absence of runtime errors to be proven.

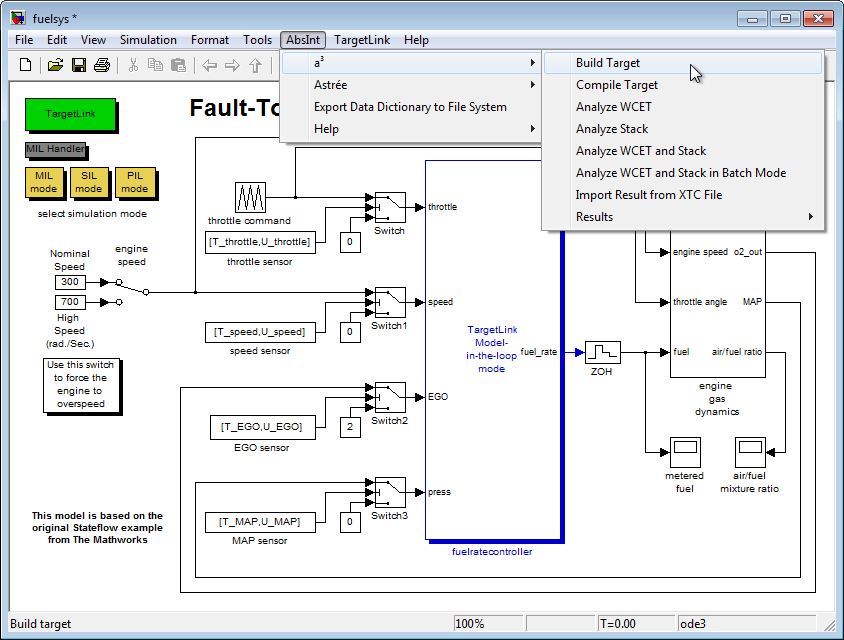

  • The static analyses can be invoked automatically from the TargetLink GUI. This makes it easy to run an analysis after each model change, if desired.

  • Navigating from the source code to the corresponding model component is possible with a single mouse click. This simplifies alarm analysis and en­ables direct error tracing between implementation and model level.

  • Relevant model-level information is automatically propagated to the analyzer to enable tighter analysis results and avoid double inputs.

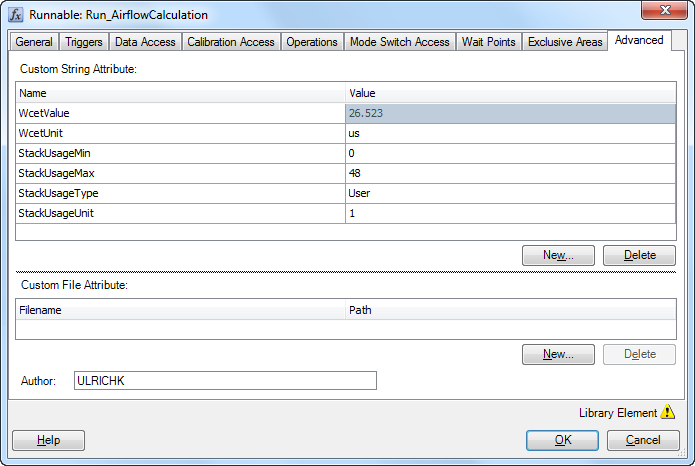

  • The worst-case execution times can also be integrated into the TargetLink model docu­mentation, or exported to an AUTOSAR authoring tool such as SystemDesk.

  • The AUTOSAR system design can then be exported to system-level timing analysis tools like SymTA/S, to analyze response times and compute end-to-end latencies.
